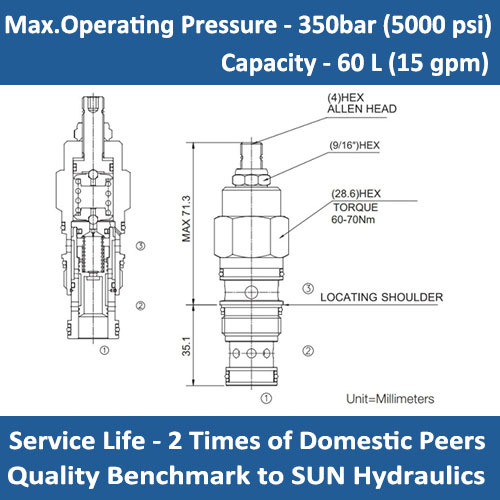

E-DPCC 3-way, pilot-operated, directional valve with internal drain to port 3 (1 blocked, 2 to 3 open)
SYMBOL
OPERATION
Pilot-operated, 3-way directional cartridges (1 blocked, 2 to 3 open) are switching devices typically used in moderate flow circuits. They can be used by themselves or to actuate larger pilot-operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds the setting.
SPECIFICATIONS:
Working Pressure: 350 bar (5000 psi)
Flow Rating: 60 lpm (15 gpm)
Control Pilot Flow: 10 - 15 in³/min.
Maximum Internal Leakage: 1 in³/min. at 70 bar (1000 psi)
Temperature Range: - 40 °C ~ +120 °C
Fluids: Mineral based fluids with viscosities of 7.4 to 420 cSt (50 to 2000 ssu)
Cavity: T-2A
PERFORMANCE:

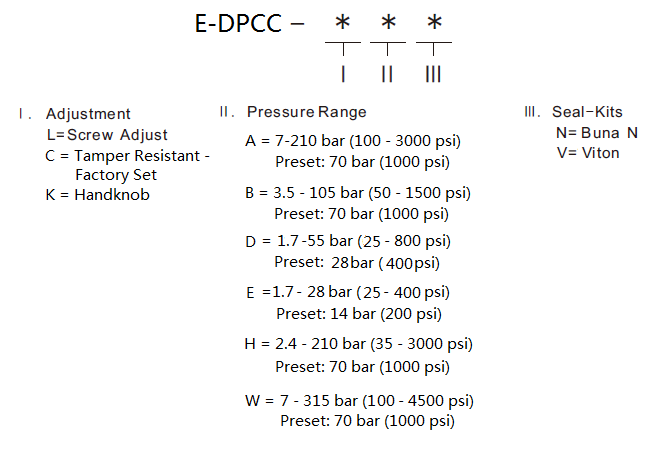

ORDER CODE:
