E-DKFS Normally closed, balanced poppet, logic element - pilot-to-open
SYMBOL
DESCRIPTION

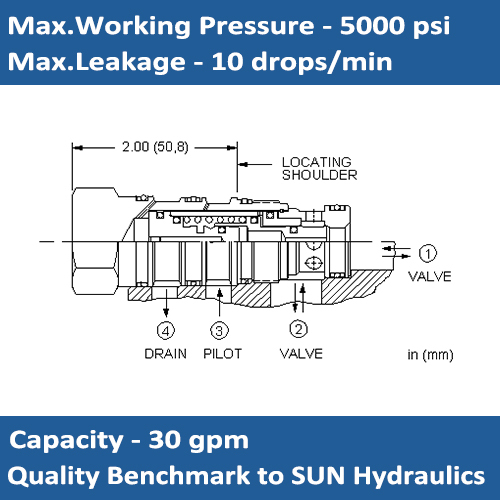

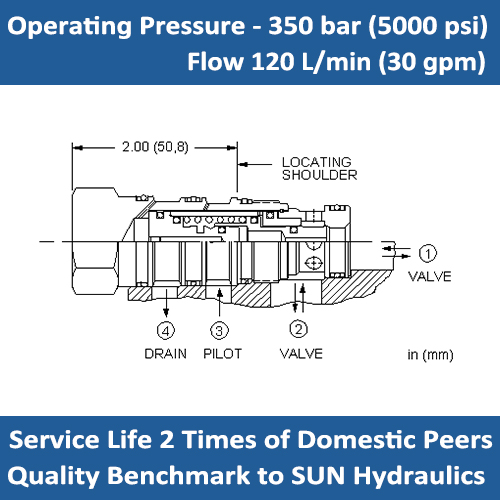

The E-DKFS is a normally closed, balanced poppet, switching element. Pilot pressure at port 3 shifts the valve to the open position.
SPECIFICATIONS:
Working Pressure: 350 bar (5000 psi)
Flow Rating: 30 gpm/min (120L/min)
Minimum Pilot Pressure Required to Shift Valve: 20 psi (300 bar)
Maximum Valve Leakage at 110 SUS (24 cSt): 10 drops/min @5000 psi (0,7 cc/min @350 bar)
Pilot Volume Displacement: 0.02 in³ (0,33 cc)
Cavity: T-22A
PERFORMANCE:
ORDER CODE:
