E-DC08-40 Dual Pilot Operated Check Valve

Item No.: E-DC08-40
A cartridge style, dual pilot operated check valve for use in blocking or load holding circuits with general purpose hydraulic fluids. HydraForce DC08-40 equivalent.
Description Review
Description

SYMBOL



DESCRIPTION

The E-DC08-40 is a cartridge style, dual pilot operated check valve for use in blocking or load holding circuits with general purpose hydraulic fluids.

OPERATION
The E-DC08-40 will block flow from 1 to 2, and from 4 to 3. Flow is allowed in the opposite direction when pressure is applied to port 2 and/or port 3.
The valve has a 3:1 pilot ratio, so at least 1/3 of the load pressure at port 1 or 4 is required at the pilot lines (ports 2 or 3) to open the flow passage to allow flow from ports 1 or 4.
The check is spring-biased at 25 psi to assure holding in a static or no load condition. An optional spring biased at 135 psi is available.



FEATURES:

l  Hardened seat for long life and low leakage.

l  Low pressure drop.

l  Compact size.


SPECIFICATIONS:

Working Pressure: 240 bar (3500 psi)

Flow Rating:19 lpm (5 gpm);  see performance chart

Pilot ratio: 3:1
Check Spring Bias: 1.7 bar (25 psi)

Maximum Internal Leakage: 0.25 ml/min (5 drops/min) at 210 bar (3000 psi)

Temperature Range: - 40°C ~ +120 °C (with Buna N seals)

Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu)

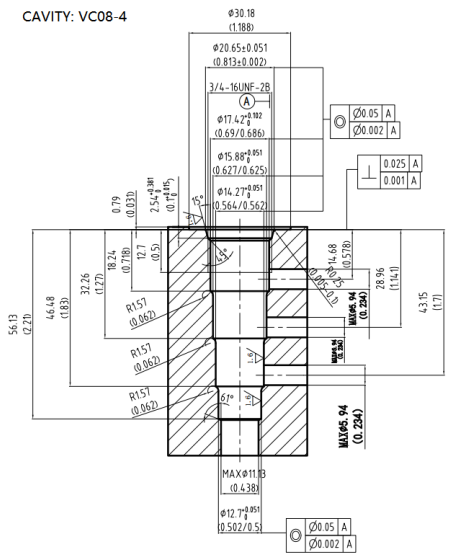

Cavity: VC08-4;


PERFORMANCE:

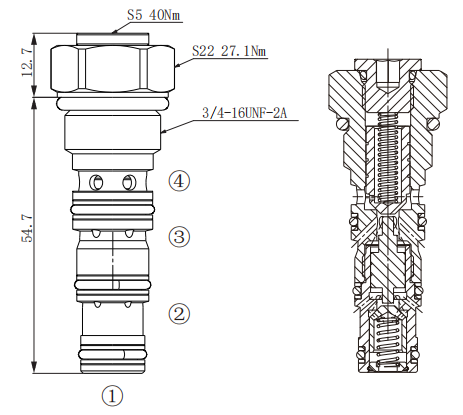

DIMENSIONS:



ORDER CODE:


AAK Hydraulic Valve is a top manufacturer for Hydraulic Pilot Operated Check Valves in Ningbo China since 2009.
We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.

Contact us to customize your valves and promote your business with our premium quality!
