SYMBOL
DESCRIPTION
The E-CXJA is a screw-in, cartridge style, hydraulic check valve for use as a blocking or load-holding device.
OPERATION
The E-CXJA free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
FEATURES:
* Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
* Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0.07 cc/min).
* Will accept 350 bar (5000 psi) at ports 1 and 2.
SPECIFICATIONS:
Max.Operating Pressure: 350 bar (5000 psi)
Capacity: 640 lpm (160 gpm)
Maximum Valve Leakage at 110 SUS (24 cSt): 0.07 ml/min. (1 drops/min.)
Temperature: - 40°C ~ +120 °C (with Buna N seals)
Fuilds: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Cavity: T-18A
Installation Torque: 465/500 Nm

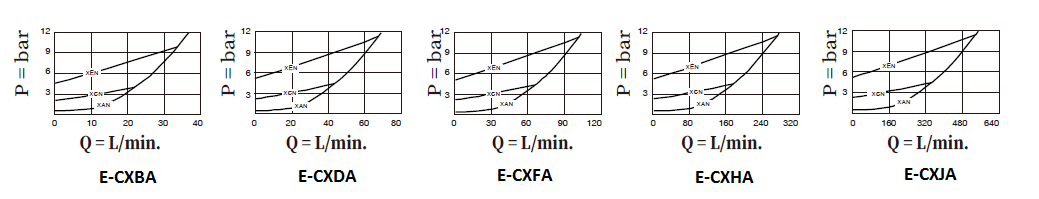

PERFORMANCE:

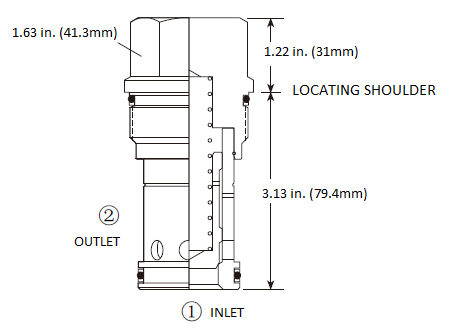

DIMENSIONS

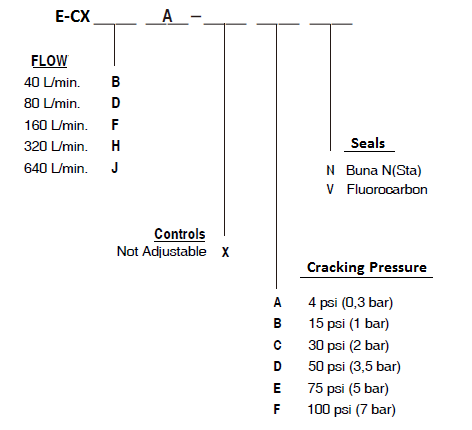

ORDER CODE:
