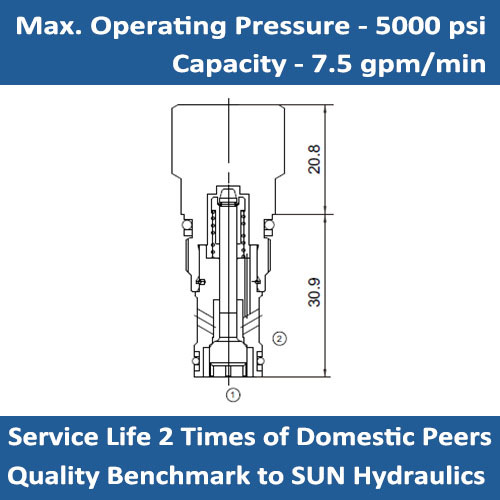

E-CXAD Free flow side to nose check valve
SYMBOL
OPERATION
Free-flow, nose-to-side check Valve are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
FEATURES
* Will accept 5000 psi (350 bar) at ports 1 and 2
* Hardened,precision ground parts for durability
* Industry common cavity
* Low leakage design
SPECIFICATIONS:
Operating Pressure: 350 bar (5000 psi)
Flow: 7.5 gpm (30 L/min)
Internal Leakage: 1 drops/min max. at operating pressure
Temperature: - 30°C to 120 °C (- 22°F to 250 °F)
Fluids: Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Cavity: T-162A
PERFORMANCE:
ORDER CODE:
