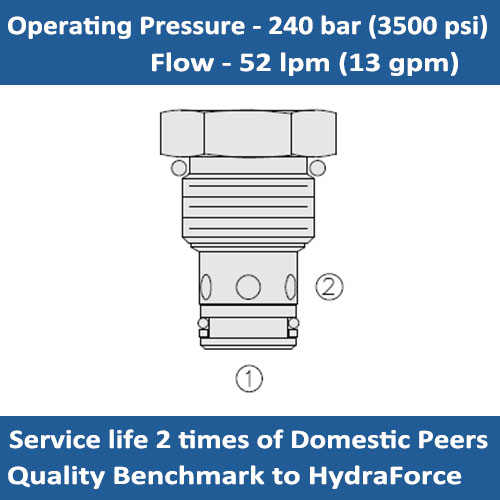

SYMBOL
DESCRIPTION
The E-CV10-21 is a screw-in, cartridge style, hydraulic check valve for use as a blocking or load-holding device.
OPERATION
The E-CV10-21 allows flow passage from port 2 to port 1, while normally blocking oil flow in the opposite direction. The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at 2 to open to 1.
FEATURES:
l Low check mass for anti-cavitation.
l Hardened seat for long life and low leakage.
l Optional bias springs for back-pressure application flexibility.
l Industry-common cavity.
SPECIFICATIONS:
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 420 bar (6090 psi)
Flow: 52 lpm (13 gpm) see performance chart
Internal Leakage: 0.25 ml/min (5 drops/min) max.at
Temperature: - 40°C ~ +120°C (with Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties at
Cavity: VC10-2
PERFORMANCE:

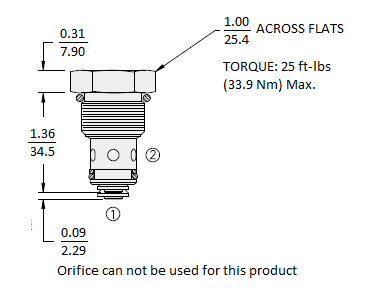

DIMENSIONS:

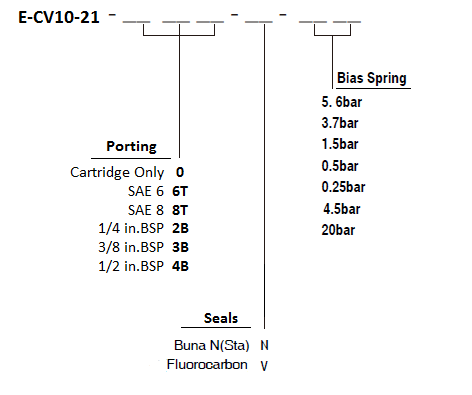

ORDER CODE:
