SYMBOL
DESCRIPTION

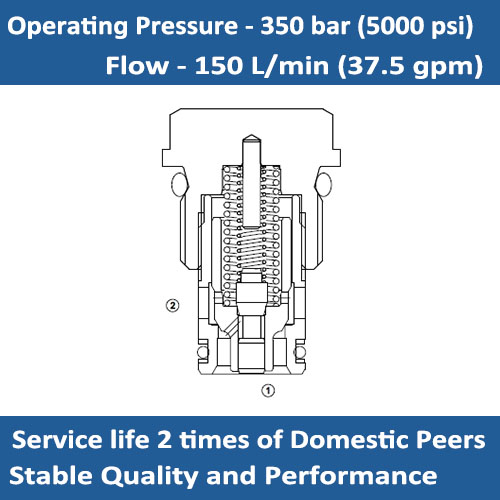

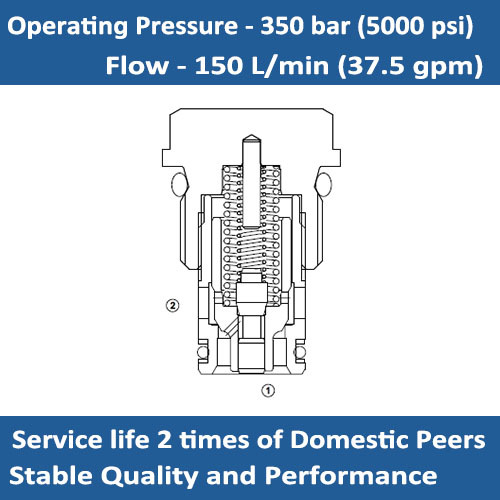

A screw-in, cartridge style, hydraulic check valve for use as a blocking or load-holding device.
OPERATION
The E-CV-2H valve pressure at 1 overcomes the spring-bias poppet and allows free flow 1 to 2. Flow in the opposite direction, from 2 to 1, is blocked by the poppet.
FEATURES:
SPECIFICATIONS:
Max. Operating Pressure: 350 bar (5000 psi)
Flow: 150 L/min
Max. Internal Leakage: 3 drop/min.
Temperature Range: - 40°C ~ +120 °C (with Buna N seals)
Fluids: Mineral based or synthetics with lubricating properties at viscosities of
Cavity: CV-2H

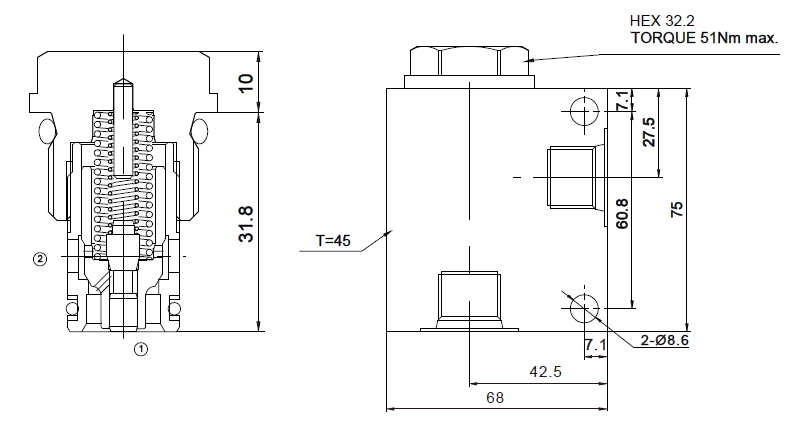

DIMENSIONS:
ORDER CODE:
