SYMBOL
DESCRIPTION

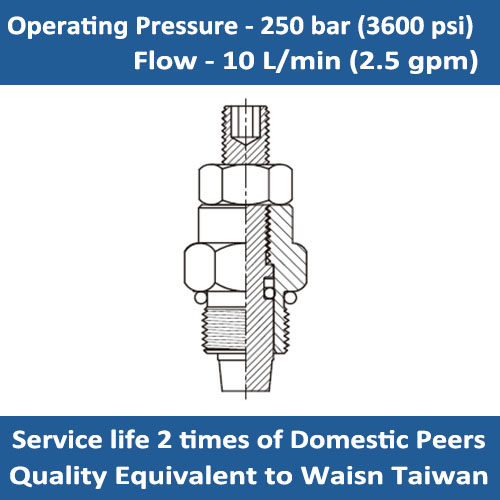

A screw-in, cartridge style, variable orifice, hydraulic flow restrictor valve.
OPERATION
The E-CST-01 valve controls flow at an adjusted value over a varying pressure range. The volume of this valve is small. This valve can adjust the flow rate till complete close and is usually used to buffer or stop pressure gauge; It can be taken as a stop valve.
FEATURES:
l Linear adjustment
l Compact size.
SPECIFICATIONS:
Working Pressure: 250 bar (3600 psi)
Flow Rating: 10 L/min (2.5 gpm)
Maximum Internal Leakage: 0.25 cc/min (5 drops/min) at Shut off.
Temperature Range: - 40°C ~ +120 °C (with Buna N seals)
Fluids: Mineral based or synthetics with lubricating properties at viscosities of
Cavity: T201

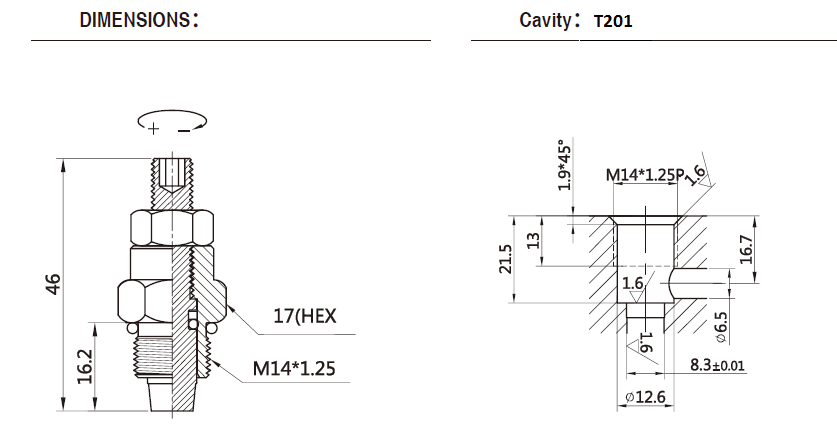

DIMENSIONS:

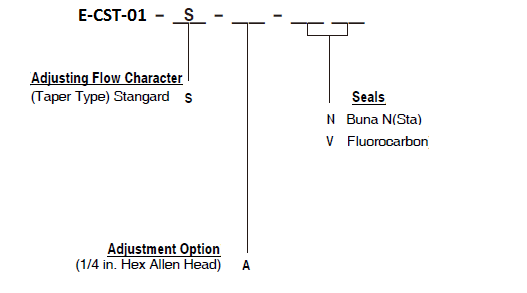

ORDER CODE:
