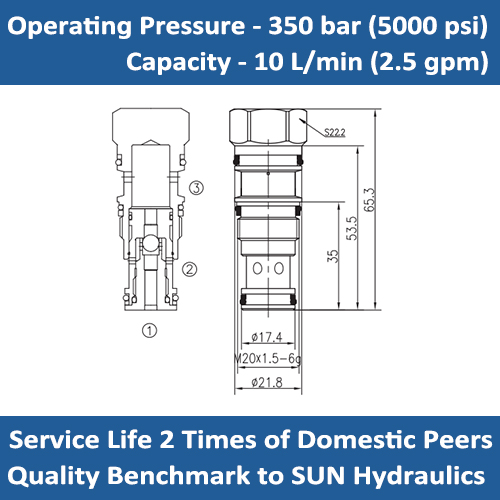

E-CSAD Single ball shuttle valve with signal at port 2
SYMBOL
OPERATION
The valve will allow flow from the higher pressure of port 1 or 3 to the port 2.
SPECIFICATIONS:
Max.Setting: 350 bar (5000 psi)
Flow: 2.5 gpm (10L/min)
Internal Leakage: 5 drops/min
Temperature: - 30°C to 100 °C
Cavity: SUN T-11A
Installation Torque: 45 - 50 Nm
ORDER CODE:
