SYMBOL
DESCRIPTION

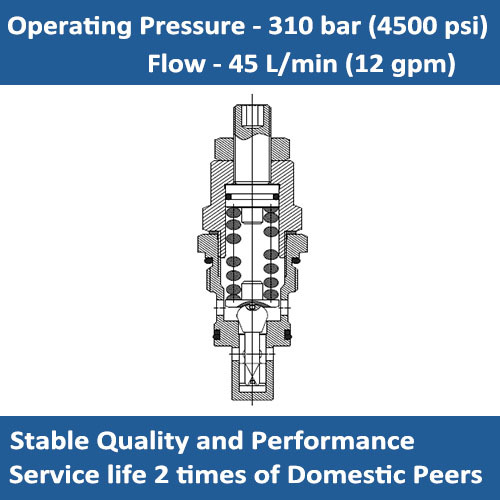

A screw-in, cartridge-style, direct-acting, poppet-type, hydraulic relief valve intended for lower flow circuits requiring low internal leakage.
OPERATION
The E-CRA-04 direct acting, differential area type, quick reaction, and small pressure gap relief valves, are used to remotely control the pressure setting of other low pilot fluid system.
FEATURES
* Adjustments cannot be backed out of the valve.
* Rapid response to pressure changes.
* Compact size.
SPECIFICATIONS:
Operating Pressure: 310 bar (4500 psi)
Rated Flow: 45 L/min (12 gpm)
Temperature: - 40°C ~ +120 °C
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Cavity: T203
PERFORMANCE:

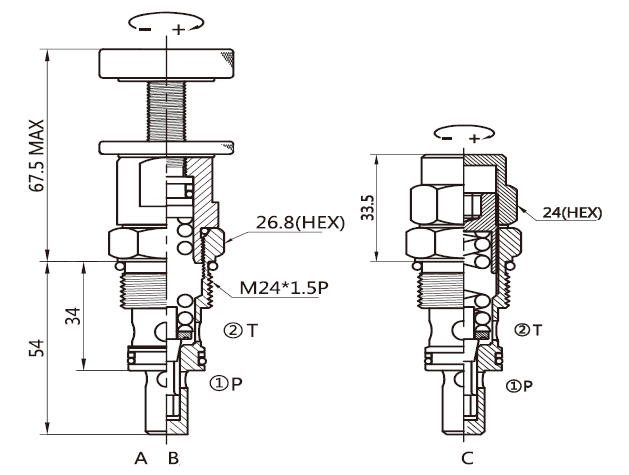

DIMENSIONS

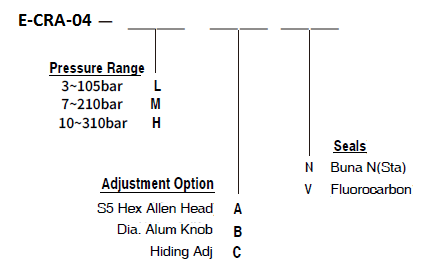

ORDER CODE:
