SYMBOL
DESCRIPTION
E-CR10-28 is a screw in, cartridge style, direct-acting, differential area, poppet type, bidirectional hydraulic relief valve.
OPERATION
The E-CR10-28 is a direct-acting, dual cross-over relief valve in a single cartridge format. When pressure at either port exceeds the nominal setting value, flow will be transmitted to the opposite port. Back pressure at either port will affect the nominal setting of the opposite port on a 1:1 basis. For correction purposes, pre-set value will be measured at port 2. Pressure at port 1 will not exceed ±150 psi from the port 2 value.
FEATURES
* Adjustments cannot be backed out of the valve.
* Adjustments prohibit springs from going solid.
* Hardened parts for long life.
* Industry common cavity.
SPECIFICATIONS:
Max. Operating Pressure: 240 bar (3500 psi)
Adjustable Pressure Range: 14 to 210 bar (200 to 3000 psi); Two springs; Pressure is set at port 2
Proof Pressure: 345 bar (5000 psi);
Reseat Pressure: 90% of crack (crack pressure at 0.95 lpm/0.25 gpm)
Maximum Difference for Crack Pressure in Both Directions: 10.5 bar (150 psi)
Flow Range: 60 lpm (16 gpm); see performance chart
Max. Internal Leakage: when reseat to 80% of crack pressure: 33 ml/minute (2 in³/minute)
Temperature: - 40°C ~ +120°C (with Buna N seals)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC10-2
PERFORMANCE:

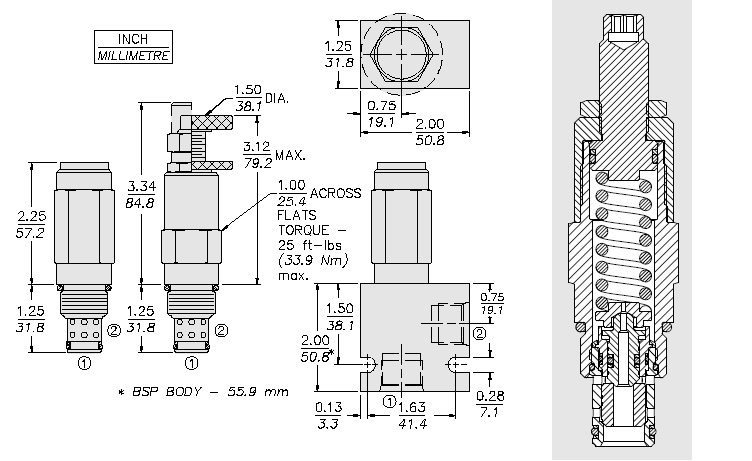

DIMENSIONS

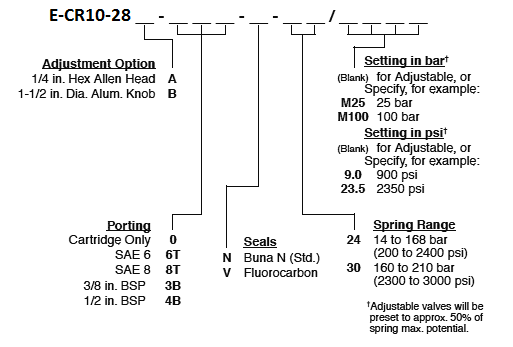

ORDER CODE:
