SYMBOL
DESCRIPTION

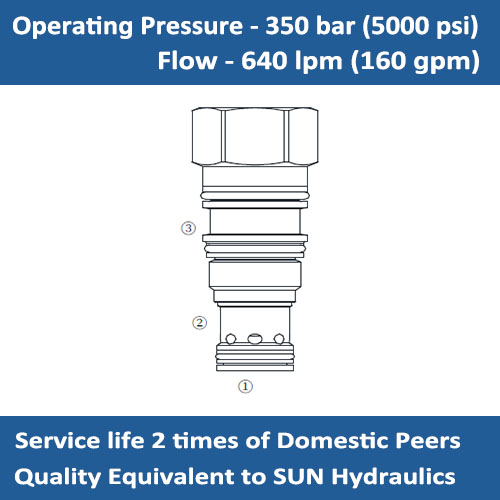

The E-COJA is a spring biased closed, pilot-to-close check cartridge that has a 1.8:1 pilot ratio.
OPERATION
This valve is a spring biased closed, pilot-to-close check cartridge that has a 1.8:1 pilot ratio. The valve allows flow from port 1 to port 2 and blocks reverse flow. Pressure at the pilot port opposes pressure at port 1 at a ratio of 1.8:1. This valve is most often used in regeneration circuits.
FEATURES
* Nominal pilot ratio is 1.8:1. This means that a pressure of 1000 psi (70 bar) at the pilot port will close a valve against a pressure of 1800 psi (125 bar) at port 1. Any decay or loss of pilot pressure could allow the valve to open, even if it is a momentary decay or loss.
* Pressure at the port 2 area directly opposes pilot pressure.
* Reverse flow through the valve from port 2 to port 1 is not possible under any condition.
SPECIFICATIONS:
Operating Pressure: 350 bar (5000 psi)
Flow: 40 gpm (160 L/min)
Pilot Ratio: 1.8: 1
Maximum Valve Leakage at 110 SUS (24 cSt): 0.07 ml/min (1 drops/min)
Temperature: - 40°C ~ +120 °C
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)

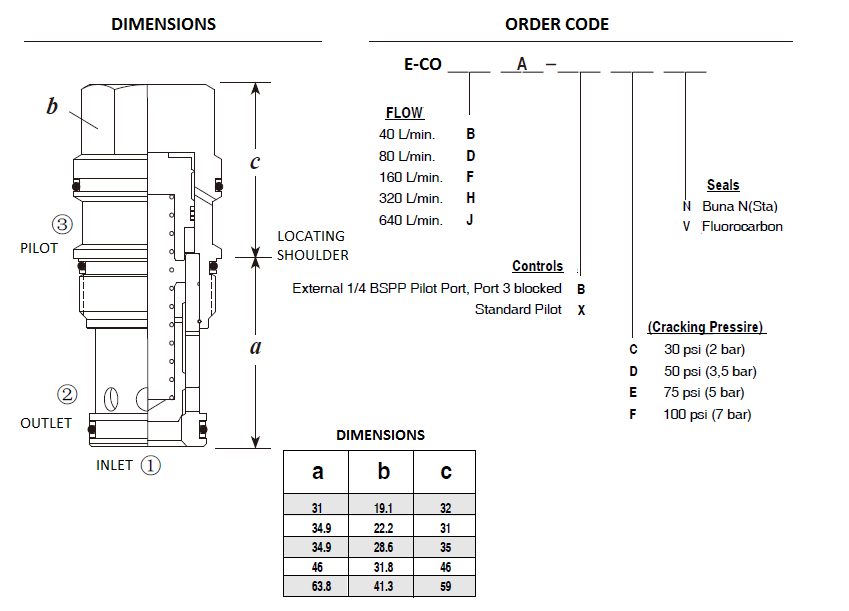

Cavity: T-19A
Installation Torque: 465/500 Nm

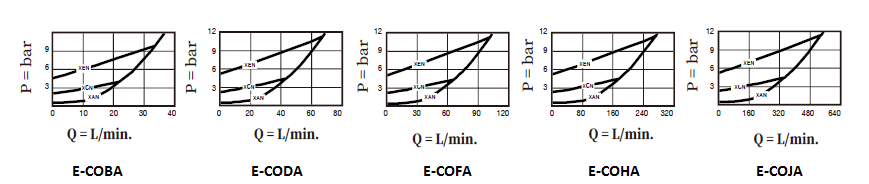

PERFORMANCE:
