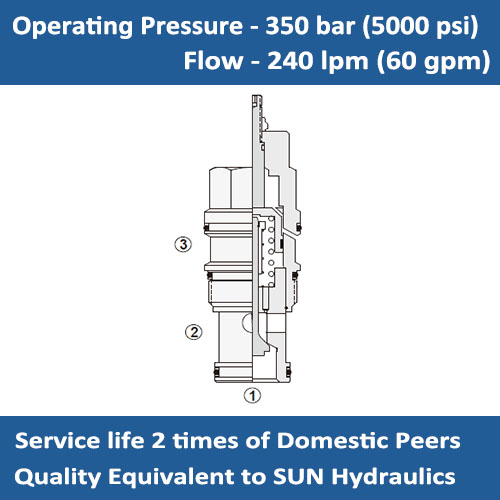

E-CKGB Pilot-to-open Check Valve with Standard Pilot
SYMBOL
OPERATION
This valve is a pilot to open check valve. It has a non-sealed pilot, a steel seat, and is non-vented. It allows free flow from the valve (port 2) to the load (port 1) and blocks flow in the opposite direction. Pressure at the pilot (port 3) will open the valve from port 1 to port 2. Pilot pressure needed at port 3 to open the valve is directly proportional to the load pressure at port 1. Pressure at port 2 directly opposes pilot pressure.
SPECIFICATIONS:
Max.Setting: 350 bar (5000 psi)
Flow: 60 gpm (240L/min)
Internal Leakage: 1 drops/min
Temperature: - 30°C to 120 °C (with Standard Buna N seals)
Cavity: SUN T-17A
PERFORMANCE:
ORDER CODE:
