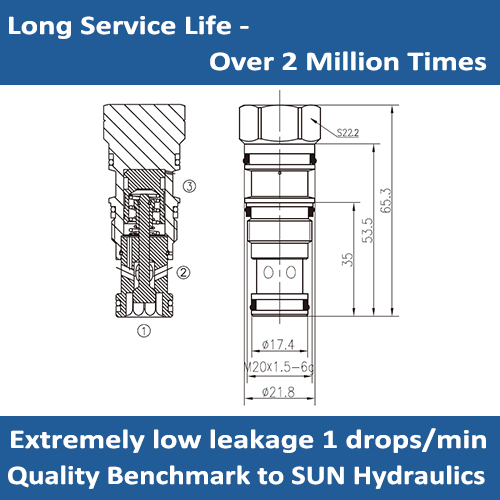

E-CKCD Hydraulic Pilot-to-open Check Valve with Sealed Pilot
SYMBOLS:
OPERATION:
The valve has a sealed pilot. Pressure at ② overcomers the spring-bias poppet and allows free flow ② to ①; Flow in the opposite direction from ① to ② is blocked by the poppet.
The cartridge has a 3:1 pilot ratio, meaning that is required at pilot ③ to open the valve.
SPECIFICATIONS:
Max. Operating Pressure: 350 bar (5000 psi)
Flow: see performance chart
Internal Leakage: 1drops/min max. at 350bar
Pilot Ratio: 3:1
Temperature: - 30°C to 100°C (with Standard Buna N seals)
Filtration: 25μm or better
Cavity: SUN T-11A
Installation Torque: 45-50Nm
PERFORMANCE:
ORDER CODE:
