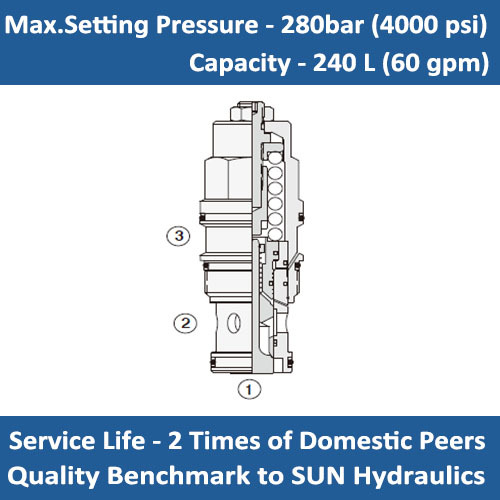

SYMBOL
DESCRIPTION
Three-way port, poppet valve, control spring main chamber internal oil return, threaded cartridge type.
OPERATION
The one-way function: allow the oil flow from 2 to 1, when the pressure of 1 is less than the srping set value, the cut-off 1 flow to 2; Overflow function: when the pressure of 1 is greater than the spring set value, 1 to 2 for overflow function. Liquid control throttling function: when the port 3 has control pressure, control 3 pressure can be changed from 1 to 2, the size of the opening, from which the throttling function is achieved.
FEATURES
* The maximum set pressure is 1.3 times the pressure generated by the maximum load.
* The back pressure of the vent 2 should be within the set pressure.
* The reset pressure should be greater than 85% of the set pressure.
* Backpressure at port 2 adds to the effective relief setting at a ratio of 1 plus the pilot ratio times the backpressure.
SPECIFICATIONS:
Maximum Setting: 280 bar (4000 psi)
Maximum Recommended Load Pressure at Maximum Setting: 215 bar (3075 psi)
Capacity: 240 L/min (60 gpm)
Pilot Ratio: 3:1
Factory Pressure Settings Established at: 30 cc/min.(2 in³/min.)
Maximum Valve Leakage at Reseat: 0,4 cc/min. (5 drops/min.)
Adjustment - No. of CW Turns from Min. to Max. setting: 3.75
Temperature: - 40℃ ~ + 120℃
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)

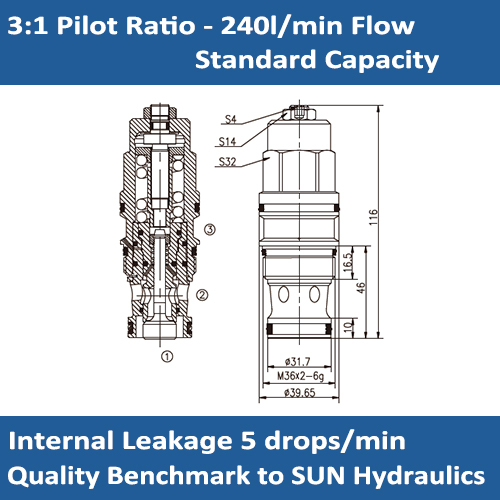

Cavity: T-17A
| Capacity | Model | Cavity | Installation Torque |
| 60 L/min (15 gpm) | E-CBCA-LHN | T-11A | 40 - 50 Nm |
| 120 L/min (30 gpm) | E-CBEA-LHN | T-2A | 60 - 70 Nm |
| 240 L/min (60 gpm) | E-CBGA-LHN | T-17A | 200 - 215 Nm |
| 480 L/min (120 gpm) | E-CBIA-LAN | T-19A | 465 - 500 Nm |
