E-CBBA 3:1 PILOT RATIO, RESTRICTIVE COUNTERBALANCE VALVE

Item No.: E-CBBA
Counterbalance valves with pilot assist are meant to control an overrunning load. SUN CBBA equivalent.
Description Review
Description

SYMBOL



DESCRIPTION

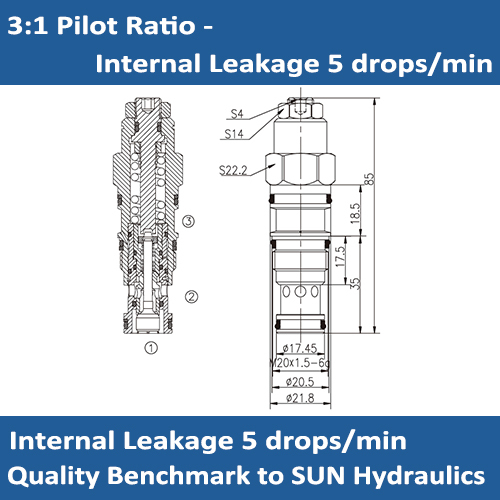

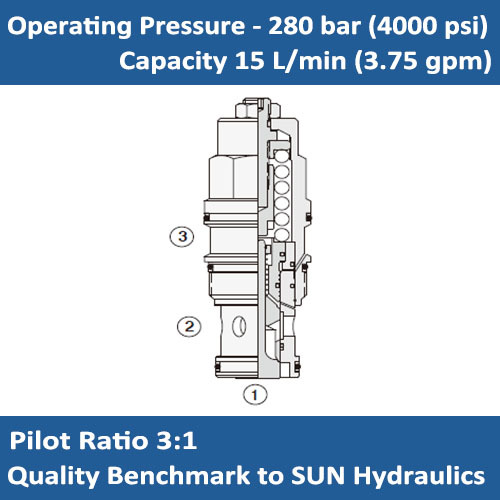

Three-way port, poppet valve, control spring main chamber internal oil return, threaded cartridge type.



OPERATION

The one-way function: allow the oil flow from 2 to 1, when the pressure of 1 is less than the spring set value, the cut-off 1 flow to 2; Overflow function: when the pressure of 1 is greater than the spring set value, 1 to 2 for overflow function. Liquid control throttling function: when the port 3 has control pressure, control 3 pressure can be changed from 1 to 2, the size of the opening, from which the throttling function is achieved.

FEATURES

* The maximum set pressure is 1.3 times the pressure generated by the maximum load.

* The back pressure of the vent 2 should be within the set pressure.

* The reset pressure should be greater than 85% of the set pressure.

* Backpressure at port 2 adds to the effective relief setting at a ratio of 1 plus the pilot ratio times the backpressure.



SPECIFICATIONS:

Maximum Setting: 280 bar (4000 psi)

Maximum Recommended Load Pressure at Maximum Setting: 215 bar (3075 psi)

Capacity: 15 L/min (3.75 gpm)

Pilot Ratio: 3:1

Factory Pressure Settings Established at: 32.8 cc/min.(2 in3/min.)

Maximum Valve Leakage at Reseat: 0,4 cc/min. (5 drops/min.)

Adjustment - No. of CW Turns from Min. to Max. setting: 3.75

Temperature: - 40℃ ~ + 120℃

Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)

Cavity: T-11A

Capacity Model Cavity Installation Torque
15 L/min (3.75 gpm) E-CBBA-LHN T-11A 40 - 50 Nm
30 L/min (7.5 gpm) E-CBDA-LHN T-2A 60 - 70 Nm
60 L/min (15 gpm) E-CBFA-LHN T-17A 200 - 215 Nm
80 L/min (20 gpm) E-CBHA-LAN T-19A 465 - 500 Nm



PERFORMANCE:




AAK Hydraulic Valve is a top manufacturer for Hydraulic Screw-in Cartridge Valves
 in Ningbo China since 2009.

We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.

Contact us to customize your valves and promote your business with our premium quality!
