E-CAGA 3:1 pilot ratio, vented counterbalance valve - atmospherically referenced

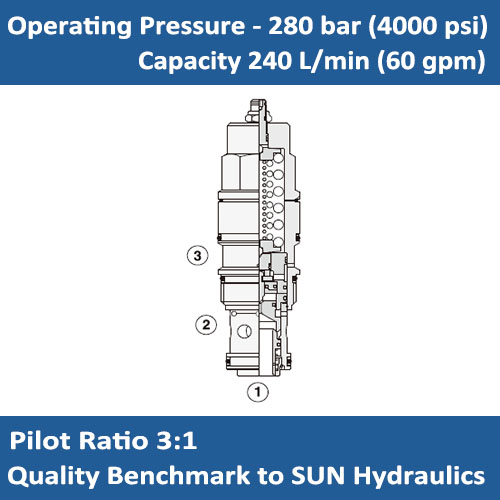

SYMBOL

DESCRIPTION

Three-way port, poppet valve, control spring main chamber internal oil return, threaded cartridge type.

OPERATION

The one-way function: allow the oil flow from 2 to 1, when the pressure of 1 is less than the spring set value, the cut-off 1 flow to 2; Overflow function: when the pressure of 1 is greater than the spring set value, 1 to 2 for overflow function. Liquid control throttling function: when the port 3 has control pressure, control 3 pressure can be changed from 1 to 2, the size of the opening, from which the throttling function is achieved.

FEATURES

* The maximum set pressure is 1.3 times the pressure generated by the maximum load.

* The back pressure of the vent 2 should be within the set pressure.

* The reset pressure should be greater than 85% of the set pressure.

* The load pressure is 210 bar when setting pressure at 280 bar for CA*A, CA*K.

* The load pressure is 320 bar when setting pressure at 420 bar for CA*G, CA*L.

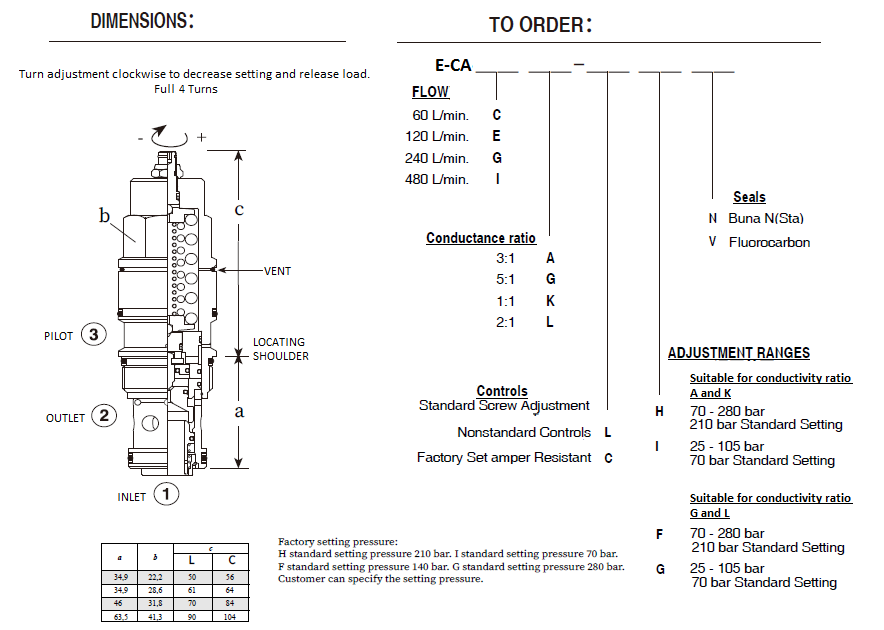

SPECIFICATIONS:

Maximum Setting: 280 bar (4000 psi)

Maximum Recommended Load Pressure at Maximum Setting: 210 bar (3075 psi)

Capacity: 240 L/min (60 gpm)

Pilot Ratio: 3:1

Factory Pressure Settings Established at: 32.8 cc/min.(2 in3/min.)

Maximum Valve Leakage at Reseat: 0,4 cc/min. (5 drops/min.)

Check Cracking Pressure: 2,8 bar (40 psi)

Adjustment - No. of CW Turns from Min. to Max. setting: 4

Temperature: - 40℃ ~ + 120℃

Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)

Cavity: T-17A

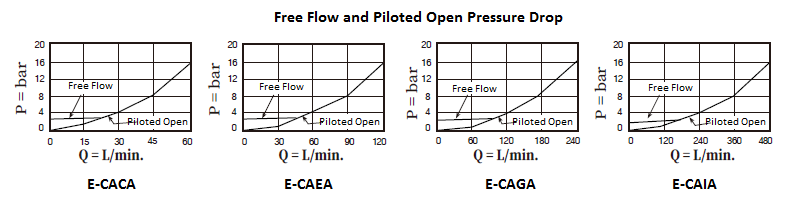

PERFORMANCE:
