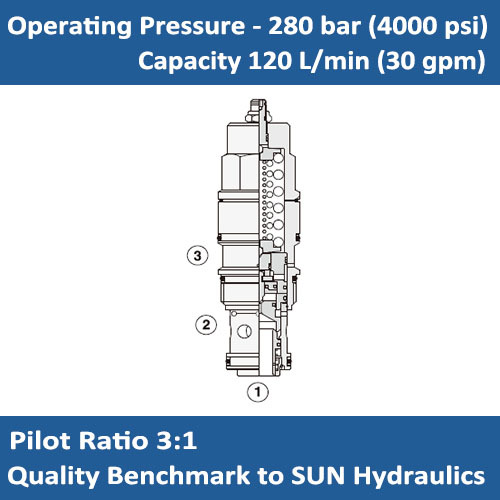

E-CAEA 3:1 pilot ratio, vented counterbalance valve - atmospherically referenced
SYMBOL
OPERATION
The check valve allows free flow from the directional valve (port 2) to the load (port 1) while a direct-acting, pilot-assisted relief valve controls flow from port 1 to port 2. Pilot assist at port 3 lowers the effective setting of the relief valve at a rate determined by the pilot ratio. Backpressure at port 2 does not affect the valve setting because the spring chamber is atmospherically referenced.
SPECIFICATIONS:
Max.Setting: 280 bar (4000 psi)
Maximum Recommended Load Pressure at Maximum Setting: 215 bar (3075 psi)
Flow: 30 gpm (120L/min)
Internal Leakage: 5 drops/min
Pilot Ratio: 3:1
Cavity: T-2A
Installation Torque: 60 – 70Nm
FEATURES:
l Counterbalance valves should be set at least 1.3 times the maximum load induced pressure.
l Full clockwise setting is less than 200 psi (14 bar).
l With vented valves, a lower pilot ratio may be required to achieve machine stability compared to non-vented valves.
l Reseat exceeds 85% of set pressure when the valve is standard set. Settings lower than the standard set pressure may result in lower reseat percentages.
l Factory Pressure Settings Established at 30cc/min (2 in³/min).
l Approximately 1 drop (0,07 cc) of fluid will pass from the pilot area to the vented spring chamber every 4000 cycles.
PERFORMANCE:
ORDER CODE:
