SRV10-01 Pilot-operated Relief Valves

Item No.: SRV10-01
A relief valve is also called safety valve, it is a device used to limit pressure in one or more locations in a hydraulic circuit. ... In short, a relief valve is a hydraulic component designed to limit pressure in an entire system or subcircuit by divert
Description
Description

SRV10-01 Pilot-operated Relief Valves

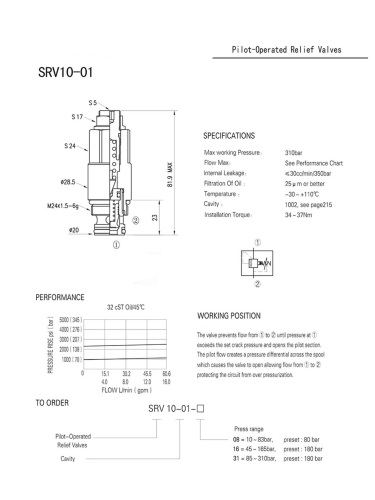

SPECIFICATIONS:
Pressure:                 310bar
Rated Flow:             See Performance Chart
Internal Leakage:    ≤30CC/min/350bar
Filtration of Oil:        25μm or better
Temperature:           -30℃ ~ +110℃
Cavity:                    1002
Installation Torque: 34-37Nm

FUNCTION:
The valve prevents from ① to ② until pressure at① exceeds the set crack pressure and opens the pilot section. The pilot flow creates a pressure differential across the spool which causes the valve to open allowing from ① to ② protecting the circuit from over pressurization.
