RV-08F Direct Operated Relief Valves

Item No.: RV-08F
A direct acting relief valve is the most basic of the pressure controls, consisting of only one poppet and one spring. It is used to limit maximum system pressure.
Description Review
Description

RV-08F Direct Operated Relief Valves

SPECIFICATIONS:
Max working Pressure:    250bar

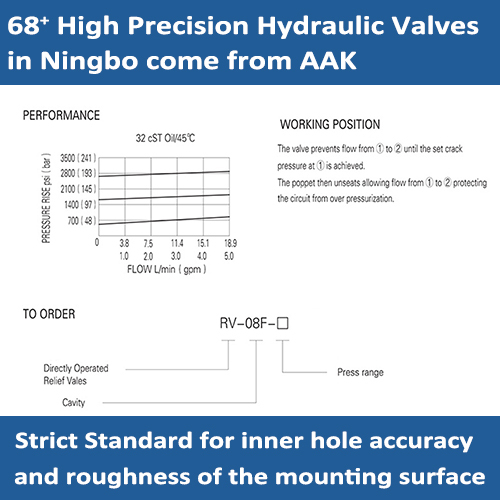

Flow Max:                        See Performance Chart
Internal Leakage:             ≤10cc/min/250bar
Filtration of Oil:                25μm or better
Temperature:                   -30℃ ~ +110℃
Cavity:                             08F-2, see page213
Installation Torque:          25-28Nm

WORKING POSITION:
The valve prevents flow from ① to ② until the set crack pressure at ① is achieved. The poppet then unseats allowing flow from ① to ② protecting the circuit from over pressurization.

AAK Hydraulic Valve is a top manufacturer for Hydraulic Direct Operated Relief Valves in Ningbo China since 2006.
We guarantee quality for 3 years: No leakage, No Noise, No Vibration.

Contact us to customize your valves and promote your business with our premium quality!
