SYMBOL

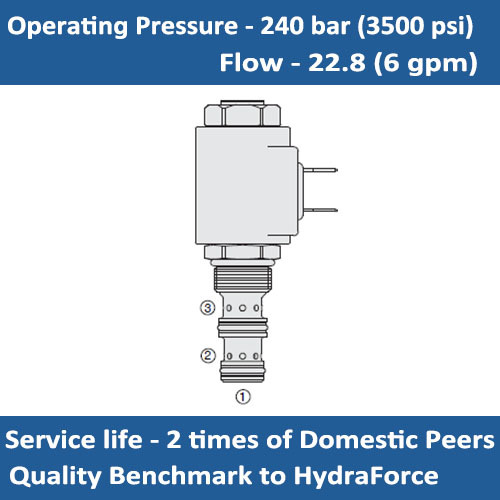

DESCRIPTION
A solenoid-operated, electrically-variable, 3-port, pressure-compensated, spool type, normally closed when de-energized, proportional flow control valve. It can be used as a priority-type flow regulator with pressure-compensated, regulated and bypass flow. It can also be used as a restrictive-type 2-way, pressure-compensated flow regulator when the bypass line (port 2) is blocked.
OPERATION
The E-PV08-30 will regulate flow out of port 3 regarless of system working pressure. With an increasing current applied to the solenoid, the E-PV08-30 will increase output flow.
Note: When used as a bypass flow control in applications where the priority flow port will be blocked by external valving (dead-headed), a small bleed orifice is required at the priority port (port 3). Consult factory.
FEATURES
* Excellent linearity and hysteresis characteristics.
* Hardened spool and cage for long life.
* Optional coil voltages and terminations.
* Efficient wet-armature construction.
SPECIFICATIONS:
Operating Pressure: Port 1 (Inlet): 240 bar (3500 psi); Port 2 and 3: 207 bar (3000 psi)
Regulated Flow Rate:
Bypass Blocked, Range A: 11.4 lpm (3.0 gpm)
Bypass Blocked, Range B: 5.7 lpm (1.5 gpm)
Bypass Open, Range A: 11.4 lpm (3.0 gpm)
Bypass Open, Range B: 5.7 lpm (1.5 gpm)
Nominal Input Flow:
Bypass Open, Range A: 15.2 lpm (4.0 gpm)
Bypass Open, Range B: 7.6 lpm (2.0 gpm)
Maximum Input Flow:
Bypass Open, Range A: 22.8 lpm (6.0 gpm)
Bypass Open, Range B: 22.8 lpm (6.0 gpm)
Internal Leakage: 100 ml/min (6 in³/min) fully closed at 207 bar (3000 in³/min)
Electrical Parameters (2 standard voltage ratings):
| Coil Voltage | Threshold Current | Max.Control Current |
| 12 VDC | 400 ± 100 mA | 1400 ± 75 mA |
| 24 VDC | 200 ± 50 mA | 700 ± 150 mA |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC08-3
PERFORMANCE:

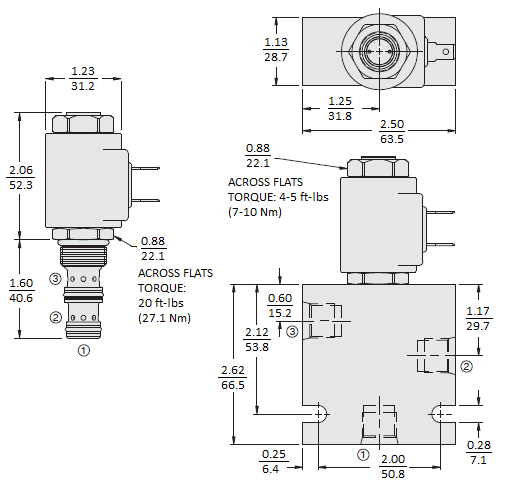

DIMENSIONS

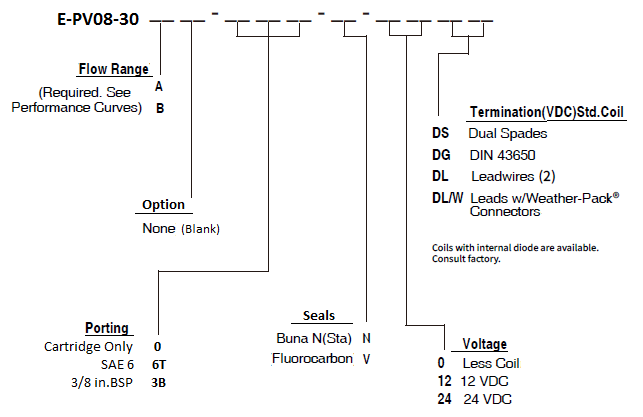

ORDER CODE:
