PRV10-08 Pilot-operated Relief Valves

Item No.: PRV10-08
A relief valve is also called safety valve, it is a device used to limit pressure in one or more locations in a hydraulic circuit. ... In short, a relief valve is a hydraulic component designed to limit pressure in an entire system or subcircuit by divert
Description
Description

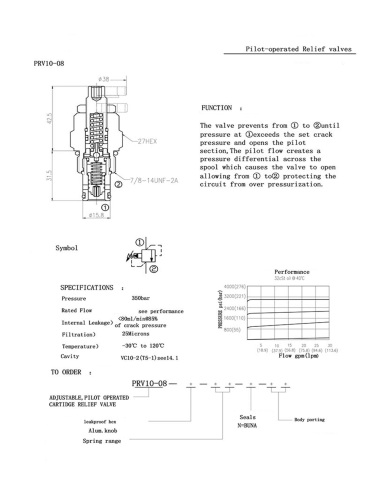

PRV10-08 Pilot-operated Relief Valves
SPECIFICATIONS:
Pressure:                 350bar
Rated Flow:             See Performance Chart
Internal Leakage:    82CC/min 85% of crack pressure
Filtration:                 25Microns
Temperature:           -30℃ ~ 120℃
Cavity:                     VC10-2(T5-1)

FUNCTION:
The valve prevents from ① to ② until pressure at① exceeds the set crack pressure and opens the pilot section. The pilot flow creates a pressure differential across the spool which causes the valve to open allowing from ① to ② protecting the circuit from over pressurization.

AAK Hydraulic Valve is a top manufacturer for Hydraulic Pilot-operated Relief Valves in Ningbo China since 2006.
We guarantee quality for 3 years: No leakage, No Noise, No Vibration.
Contact us to customize your valves and promote your business with our premium quality!
