PR06-00 Direct-acting Pressure Reducing Valves

Item No.: PR06-00
The pressure reducing valve is a valve that reduces the inlet pressure to a required outlet pressure through regulation, and automatically keeps the outlet pressure stable by relying on the energy of the medium itself.
Description Review
Description

PR06-00 Direct-acting Pressure Reducing Valves
SPECIFICATIONS:
Pressure:                 350bar
Rated Flow:             See Performance Chart
Internal Leakage:    600CC/min
Filtration:                 25Microns
Temperature:           -30℃ ~ 120℃
Cavity:                     VC10-S2(T5-S2)

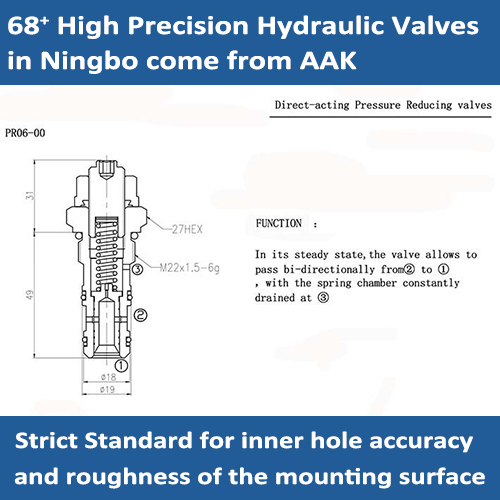

FUNCTION:
In its steady state, the valve allows to pass bi-directionally from② to ①, with the spring chamber constantly drained at ③.

AAK Hydraulic Valve is a top manufacturer for Hydraulic Pressure Reducing Valves in Ningbo China since 2006.
We guarantee quality for 3 years: No leakage, No Noise, No Vibration.
Contact us to customize your valves and promote your business with our premium quality!
