PS08-00 Direct-acting Sequence Valves

Item No.: PS08-00
A sequence valve is a pressure-operated, normally closed, poppet or spool valve that opens at an adjustable set pressure. Some designs use a spring acting directly on the spool or poppet, others are pilot-operated. A sequence valve always has an external
Description
Description

PS08-00 Direct-acting Sequence Valves

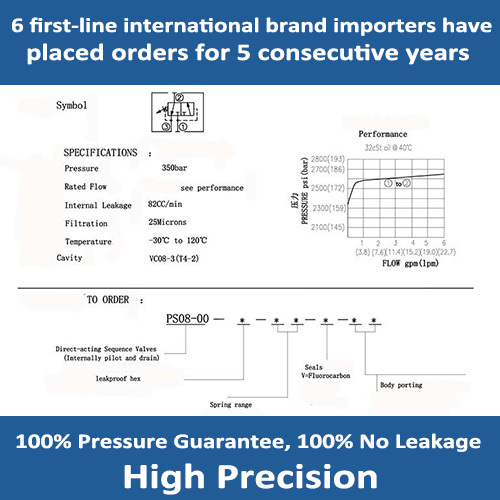

SPECIFICATIONS:
Pressure:                 350bar
Rated Flow:             See Performance Chart
Internal Leakage:    82CC/min
Filtration:                 25Microns
Temperature:           -30℃ ~ 120℃
Cavity:                     VC08-3(T4-2)

FUNCTION:

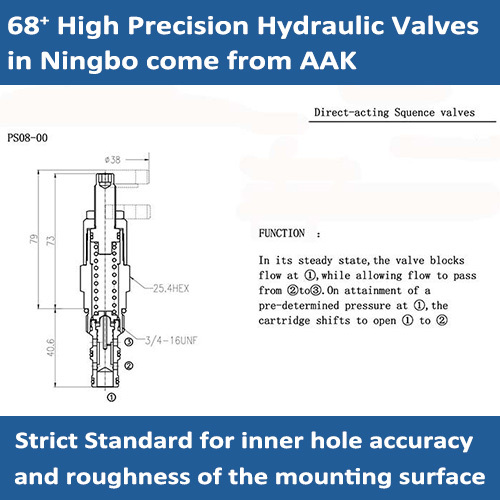

In its steady state, the valve blocks flow at ①, while allowing flow to pass from ② to ③. On attainment of a pre-determined pressure at ①, the cartridge shifts to open ① to ②


AAK Hydraulic Valve is a top manufacturer for Hydraulic Direct-acting Sequence Valves in Ningbo China since 2006.
We guarantee quality for 3 years: No leakage, No Noise, No Vibration.
Contact us to customize your valves and promote your business with our premium quality!
