PC16-00 Pilot to Open, Check Valve

Item No.: PC16-00
Pilot operated check valves work by allowing free flow from the inlet port through the outlet port. ... When the air flow stops, the poppet check the trapped air. When the valve is piloted, the trapped air is allowed to flow back out of the control valve.
Description Review

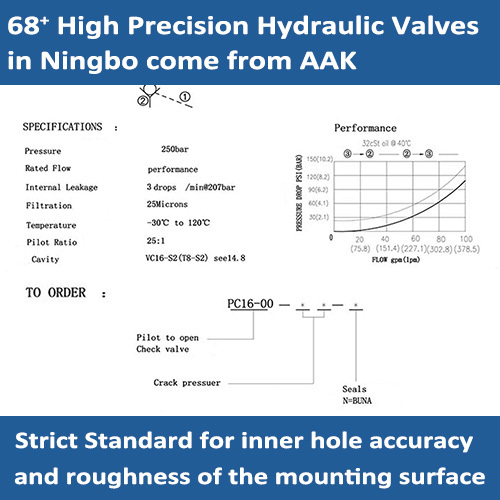

PC16-00 Pilot to Open, Check Valve

Pressure:                 250bar
Rated Flow:             Performance
Internal Leakage:    3drops/min/207bar
Filtration of oil:         25Microns
Temperature:           -30℃ ~ +120℃
Pilot Ratio:              25 : 1
Cavity:                    VC16-S2(T8-S2), see14.8

The valve allows flow from ② to ③ with very low pressure drop, while blocks flow from ③ to ②; the valve blocks flow ③ to ② until sufficient pressure is applied at ①; the valve has a 25:1 pilot ratio, meaning that at least 1/25 of the load pressure held at ③ is ① to open to the valve.
