NV10-00 Needle Valve

Item No.: NV10-00
A needle valve is used to accurately control flow rates of fluids. The adjustments are gradual and smooth for controlling the flow rate, however, they can also be used as a reliable shut-off valve.
Description Review
Description

NV10-00 Needle Valve

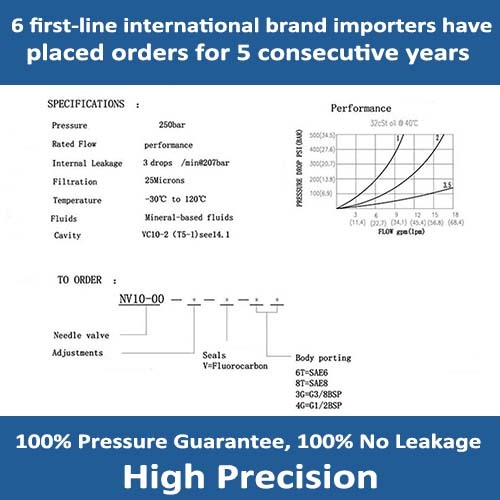

SPECIFICATIONS:
Pressure:                 250bar
Rated Flow:             See Performance Chart
Internal Leakage:    3drops/min/207bar
Filtration of Oil:        25Microns
Temperature:           -30℃ ~ +120℃
Fluids:                     Mineral-based fluids
Cavity:                     VC10-2(T5-1), see14.1

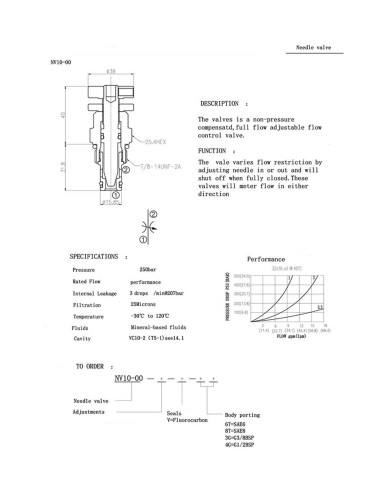

DESCRIPTION:
The valves is a non-pressure compensated, full flow adjustable flow control valve.

FUNCTION:
The valve varies flow restriction by adjusting needle in or out and will shut off when fully closed. These valves will meter flow in either direction.

AAK Hydraulic Valve is a top manufacturer for Hydraulic Needle Valves in Ningbo China since 2006.
We guarantee quality for 3 years: No leakage, No Noise, No Vibration.

Contact us to customize your valves and promote your business with our premium quality!
