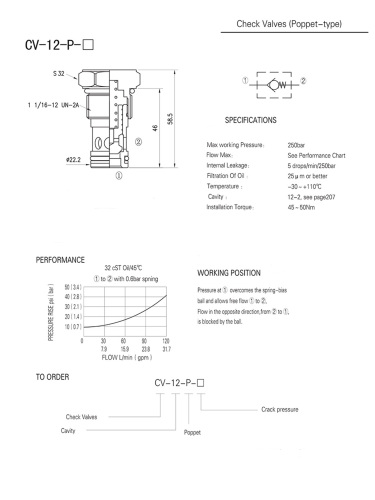

CV-12-P Check Valves (Poppet-type)
SPECIFICATIONS:
Max working Pressure: 250bar
Flow Max: See Performance Chart
Internal Leakage: 5 drops/min/250bar
Filtration of Oil: 25μm or better
Temperature: -30℃ ~ +110℃
Cavity: 12-2, see page207
Installation Torque: 45-50Nm
WORKING POSITION:
Pressure at ① overcomes the spring-bias ball and allows free flow ① to ②.
Flow in the opposite direction, from ② to ①, is blocked by the ball.
