CV-08 Check Valves (Ball-type)

Item No.: CV-08
Check valves are the simplest form of hydraulic devices in that they permit free oil flow in one direction and block oil flow in the opposite direction. Check valves may also be used as a directional or pressure control in a hydraulic system.
Description Review
Description

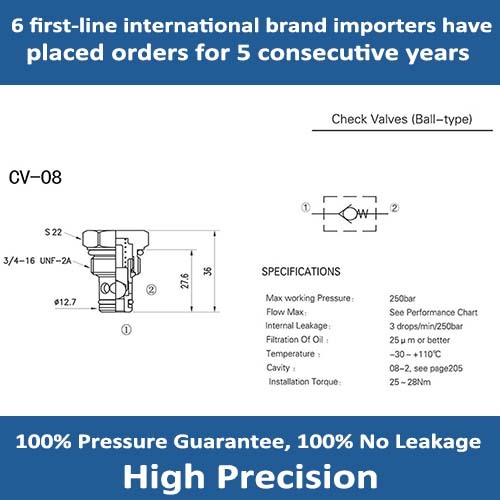

CV-08 Check Valves (Ball-type)

SPECIFICATIONS:
Max working Pressure:  250bar

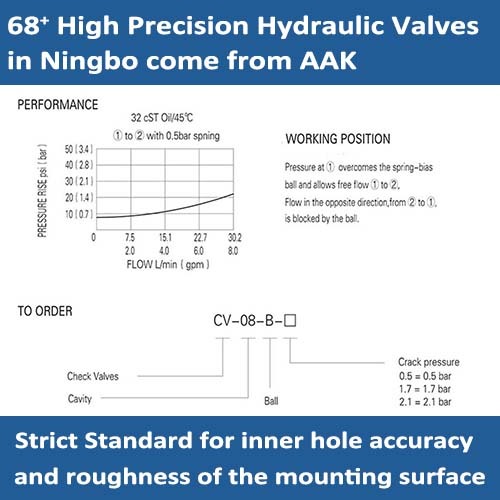

Flow Max:                      See Performance Chart
Internal Leakage:          3drops/min/250bar
Filtration of Oil:              25μm or better
Temperature:                 -30℃ ~ +110℃
Cavity:                           08-2, see page205
Installation Torque:        25-28Nm

WORKING POSITION:
Pressure at ① overcomes the spring-bias ball and allows free flow ① to ②.
Flow in the opposite direction, from ② to ①, is blocked by the ball.

AAK Hydraulic Valve is a top manufacturer for Hydraulic Check Valves in Ningbo China since 2006.
We guarantee quality for 3 years: No leakage, No Noise, No Vibration.

Contact us to customize your valves and promote your business with our premium quality!
